T50-01 Timber Energy Absorbing Terminal

T50-01 Timber Energy Absorbing Terminal

T50-01 Light

A Massive Leap In Energy Absorbing Technology

T50-01 is the new terminal for road barriers designed in collaboration with CrashTech. Compatible with all products in the range, it is an energy absorbing terminal in laminated wood and steel and has been successfully tested for Class T50 performance according to the current draft of the CEN/TS on terminals (ex prEN 1317-7) .

It can also be installed as a retrofit adaptation for all curved type terminals for two-band barriers already installed on the road.

Standard Installation Sheet T50-01

Retrofit Installation Sheet T50-01

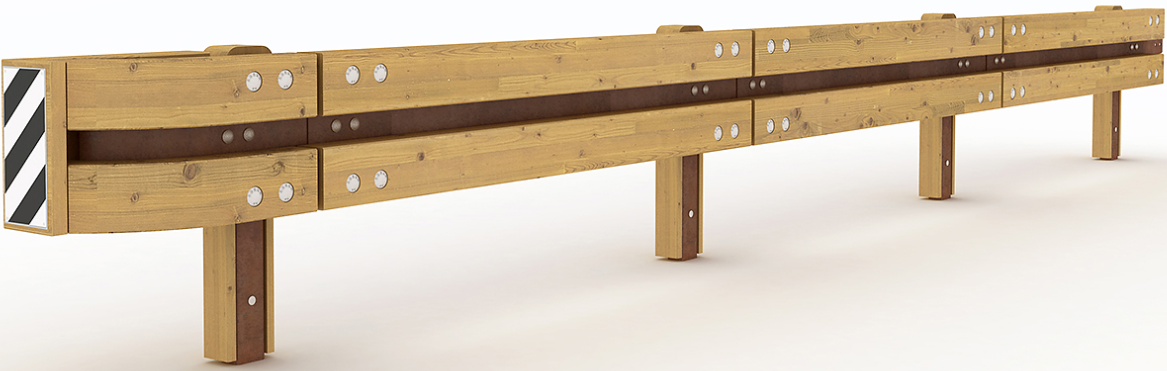

T50-01 Light


  • Terminal Class T50
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Easy to install

Typical Applications

  • Public Roads
  • Paths
  • Country Roads

Barrier Specification

  • Reference Standard: CEN/TS terminals
  • ASI Index: 0.9
  • Impact Severity Class: A
  • VCDI index: FS1010000
  • Permanent Lateral Displacement: 0.10m
    Exit Box Approach Side:1.54m
  • Exit Box Departure Side: 3.22m
  • Exit Box Class: Z1
