H2BP-01 Bridge Safety Barrier

H2BP-01 Bridge Safety Barrier


High Level Security Bridge Barrier

Bridge safety barriers made of laminated wood and Corten steel, CE certified according to the harmonized standard EN 1317-5 with containment level in H2 class, CE certificate n°0497/CPR/3153 (first issue n° CPD/0497/3153/09 on 18/06/09) issued by CSI SPA – Bollate (MI).

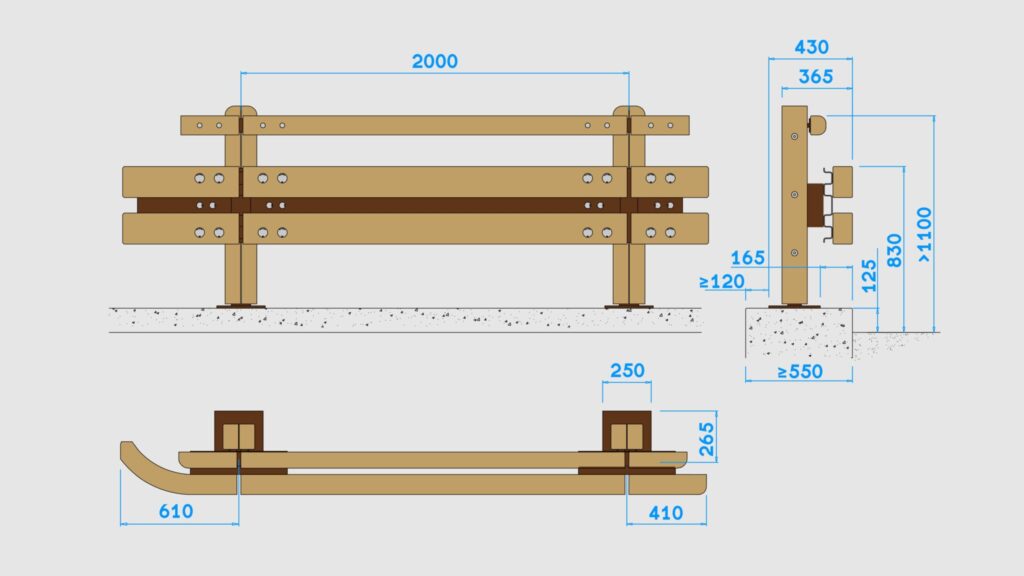

Installation Sheet H2BP-01

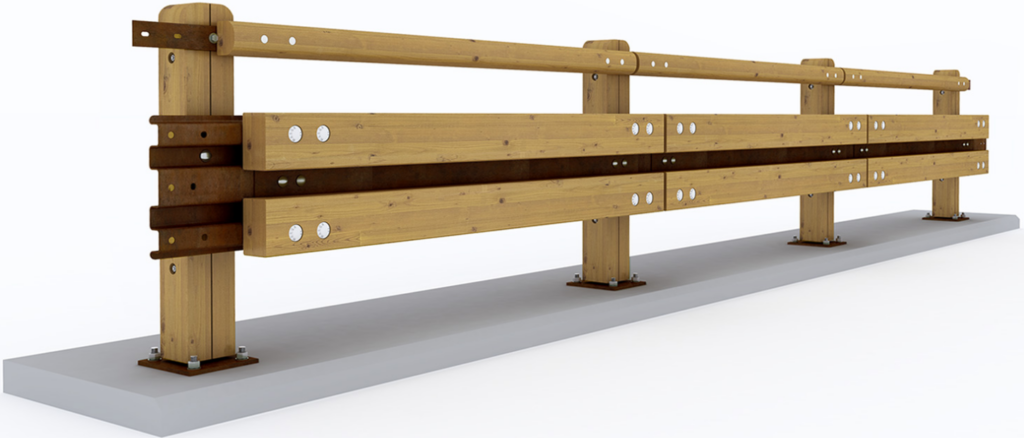

H2BP-01 Light

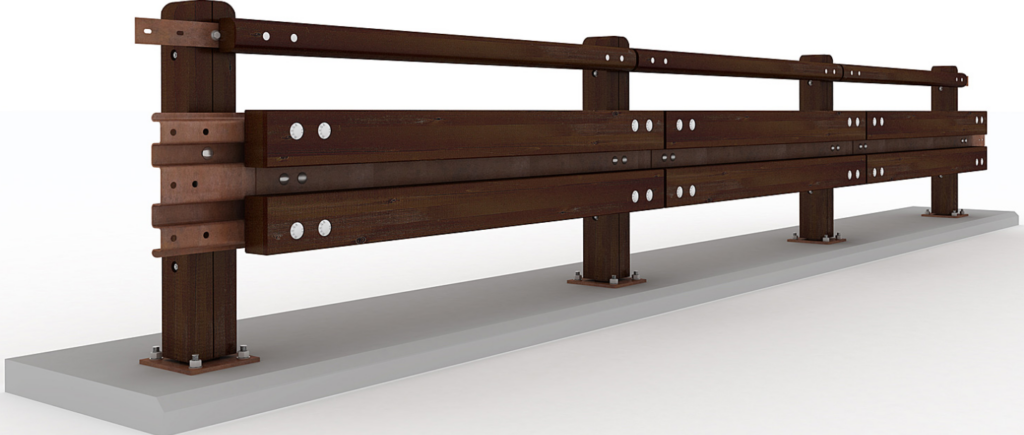

H2BP-01 Dark


  • H2 Crash Rated
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Optional Handrail
  • Easy to install

Typical Applications

  • Bridges

Barrier Specification

  • Containment Class: H2
  • Containment Level: 288 KJ
  • Crash Test Length: 80m
  • Working Width: W5 ≤ 1.7m
  • Vehicle Intrusion: VI ≤ 1.7m
  • Concrete Curb: 125mm Raised
  • Height From Tarmac Level: 830mm – 1100mm
  • Post Spacings: 2m
