P1-01 “Beaver” Timber Energy Absorbing Terminal

Posted by nexusadmin

P1-01 “Beaver” Timber Energy Absorbing Terminal

P1-01 Beaver

The New Break Through For Energy Absorbing Terminals!

The Beaver is the new end terminal for road safety barriers, designed in-house with technical input from LAST Laboratories at the Milan Polytechnic University. It is compatible with our full product range and it is the first ever crash cushion made of laminated wood and Corten steel. It has successfully passed full testing for Class P1 in compliance with UNI ENV 1317-4: 2003. The Beaver now completes the Margaritelli Road Safety product range, guaranteeing road users the highest level of protection.

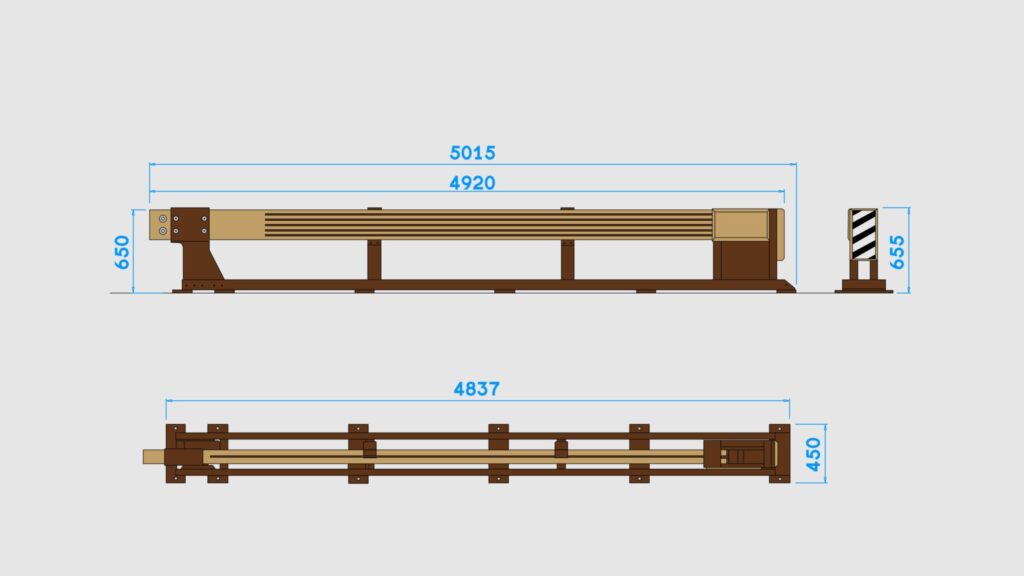

Installation Sheet P1-01 Beaver

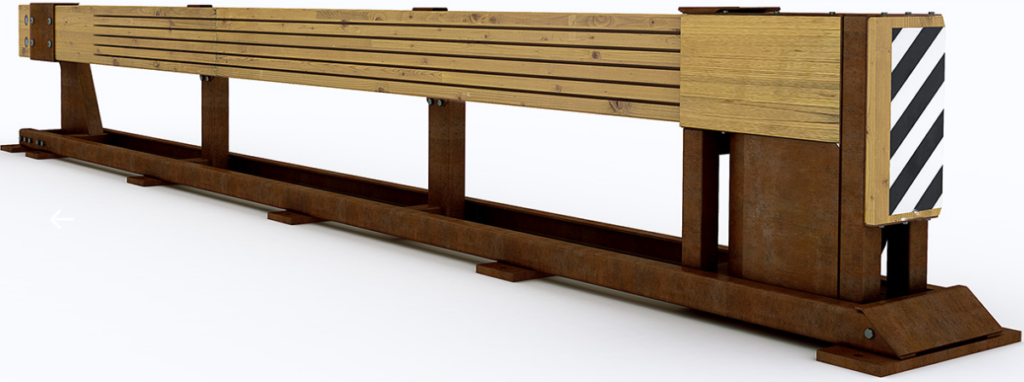

P1-01 Beaver Front

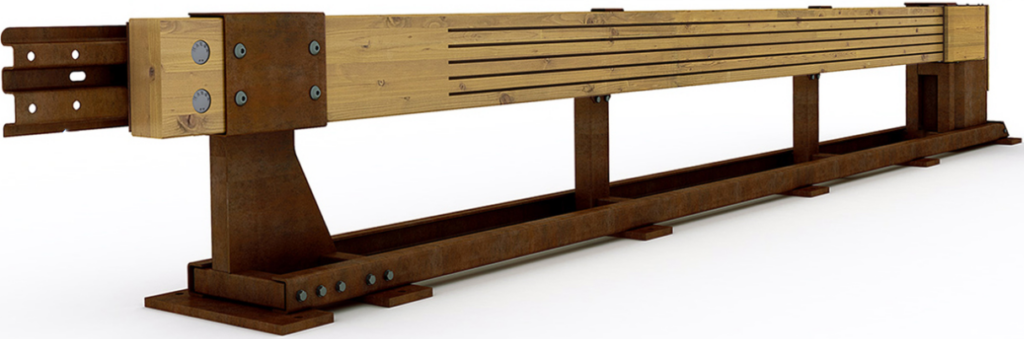

P1-01 Beaver Rear

Benefits

  • Terminal Class P1
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Easy to install

Typical Applications

  • Public Roads
  • Paths
  • Country Roads

Barrier Specification

  • Reference Standard: ENV 1317-4
  • ASI Index: 0.8
  • Impact Severity Class: A
  • VCDI index: FS 0000000
  • Permanent Lateral Displacement: 2.83m
    Exit Box Approach Side:0m
  • Exit Box Departure Side: 4.60m
  • Exit Box Class: Z2
