H2BP-03 Bridge Safety Barrier

H2BP-03 Bridge Safety Barrier


Maximum Level Security Bridge Barrier

Bridge safety barriers made of laminated wood and Corten steel, CE certified according to the harmonized standard EN 1317-5 with containment level in H2 class, CE certificate n°0497/CPR/3481 (first issue on 17/03/10) issued by CSI SPA – Bollate (MI).

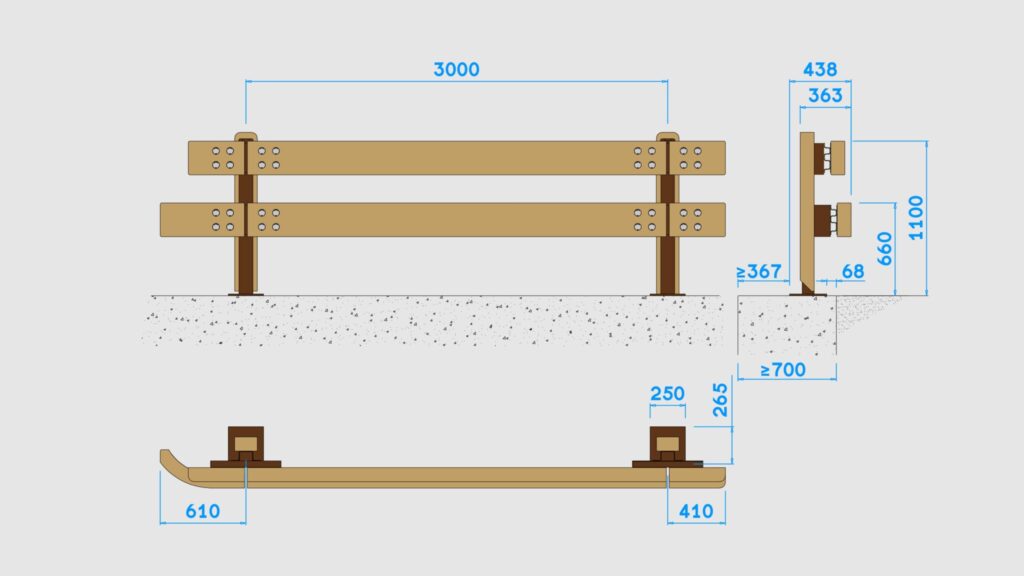

Installation Sheet H2BP-03

H2BP-01 Light

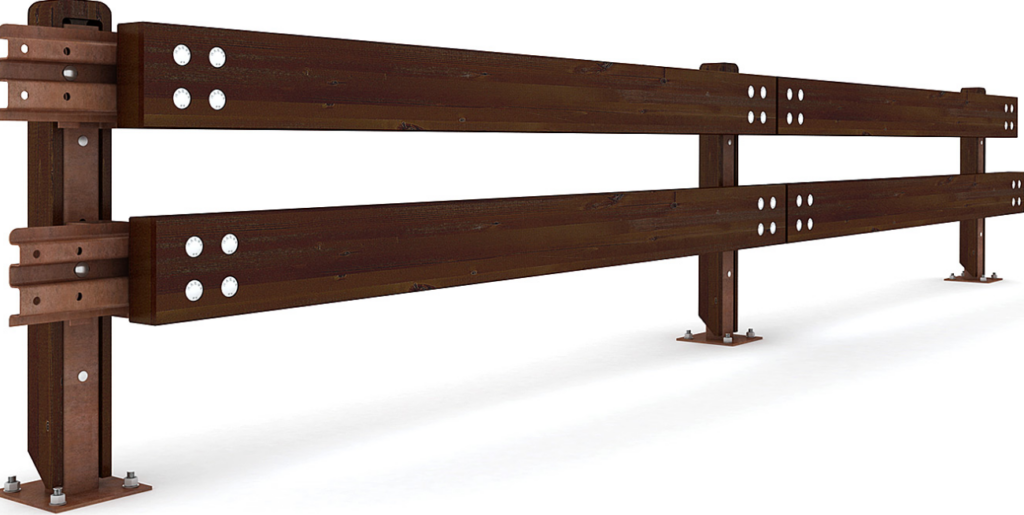

H2BP-03 Dark


  • H2 Crash Rated
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Optional Handrail
  • Easy to install

Typical Applications

  • Bridges

Barrier Specification

  • Containment Class: H2
  • Containment Level: 288 KJ
  • Crash Test Length: 78m
  • Working Width: W4 ≤ 1.3m
  • Vehicle Intrusion: W4 ≤ 1.3m
  • Concrete Curb: Tarmac Level
  • Height From Tarmac Level: 660mm – 1100mm
  • Post Spacings: 3m
