N2BL-01 – Natural Timber Clad Safety Barrier Systems
Maintaining environmental aesthetics

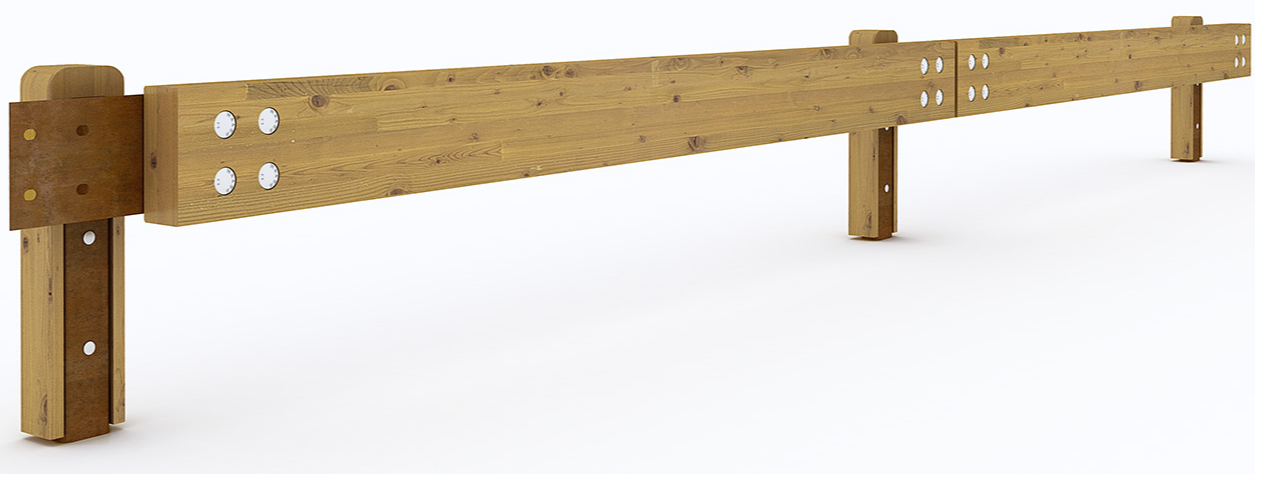

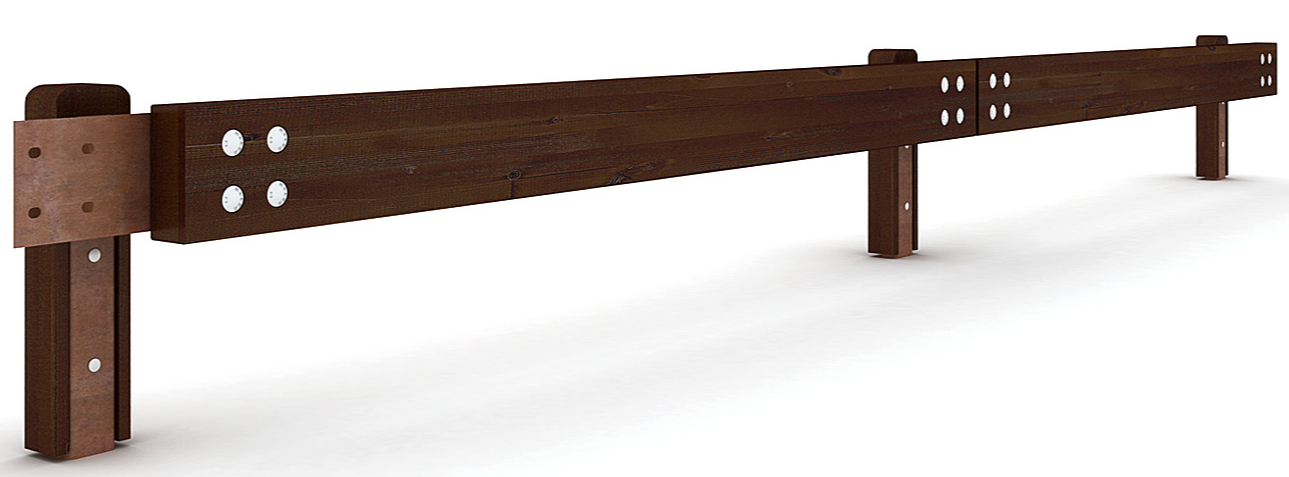

The N2BL-01 crash rated safety barrier has been developed to offer road protection with the aesthetic look of natural timber. The new concept of using Corten steel and timber provides a unique N2 rated crash barrier system that looks and feels like it belongs in its natural environment! Look at our images below to see what it looks like!

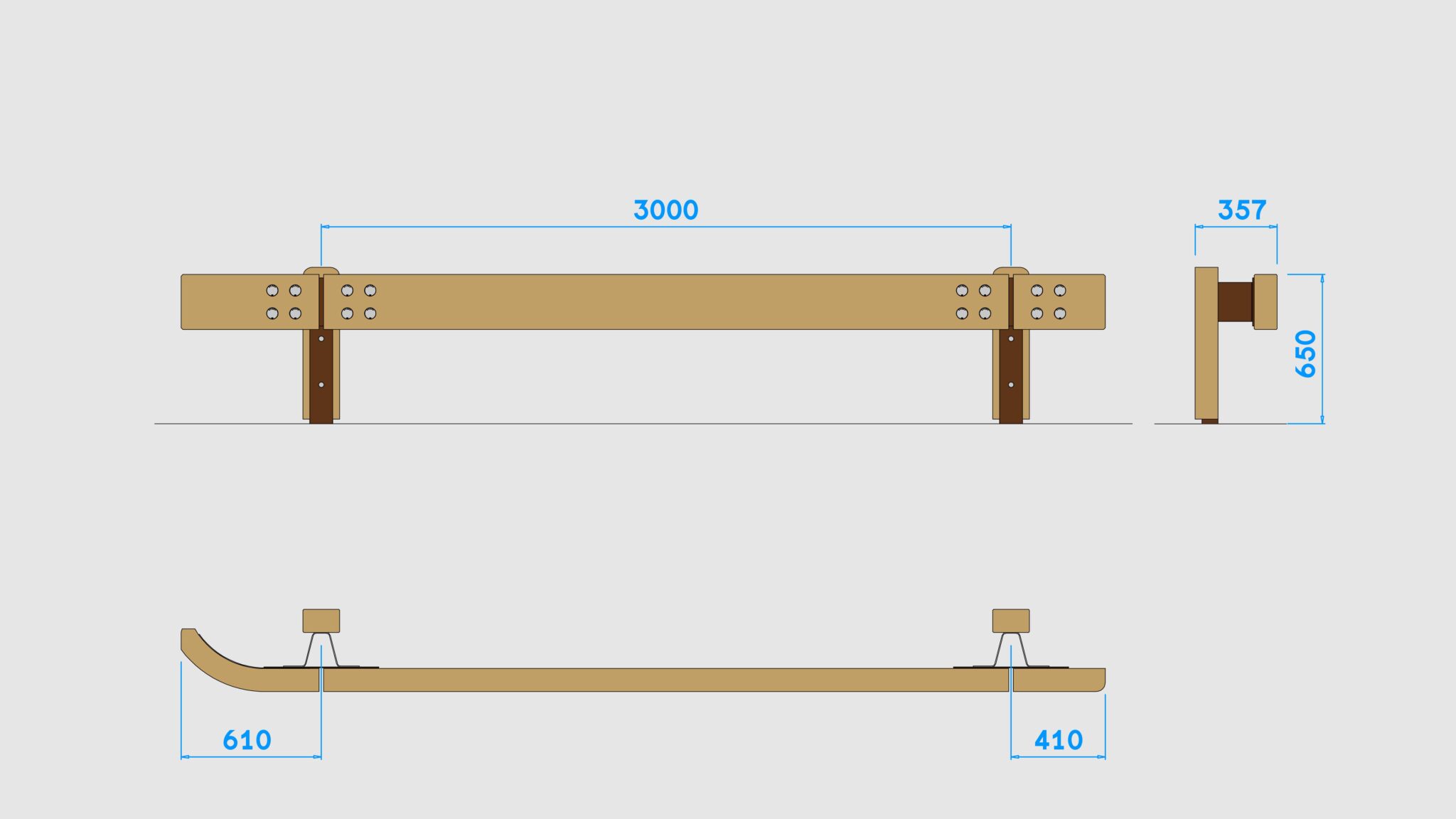

Typical installation technical schematic (Requires Adobe Acrobat)
Benefits
- N2 Crash Rated
- Natural timber appearance
- Fully recyclable materials
- Modular system
- Optional Handrail
- Easy to install
Typical Applications
- Retail parks
- Parks
- Preservation Areas
- Picnic Areas
- Country Roads and Highways
Barrier Specification
- Containment Class: N2
- Containment Level: 82 kj
- Crash Test Length: 78m
- Working Width: W4 ≤ 1.3m
- Post Embedment: 900mm
- Height From Tarmac Level: 650mm
- Post Spacings: 3m
