N2BL-02 Timber Crash Rated Barrier

N2BL-02 Timber Crash Rated Barrier


High Level Timber Security

Road side safety barriers made of laminated wood  and Corten steel, CE certified according to the harmonized standard EN 1317-5 with containment level in N2 class.

Installation Sheet N2BL-02

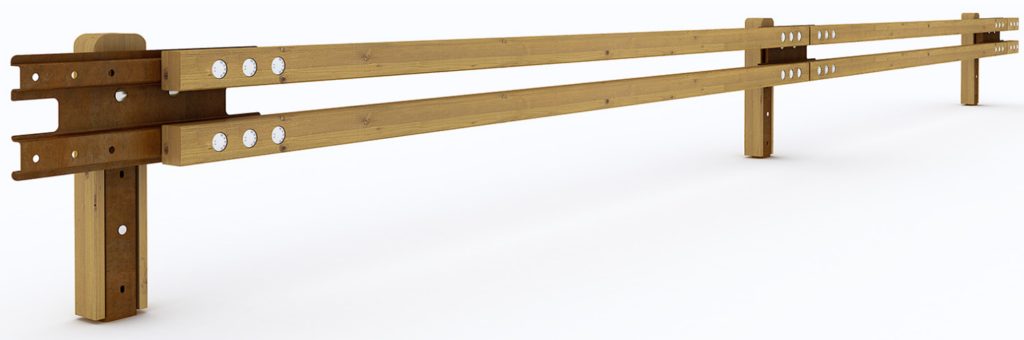

N2BL-02 Light

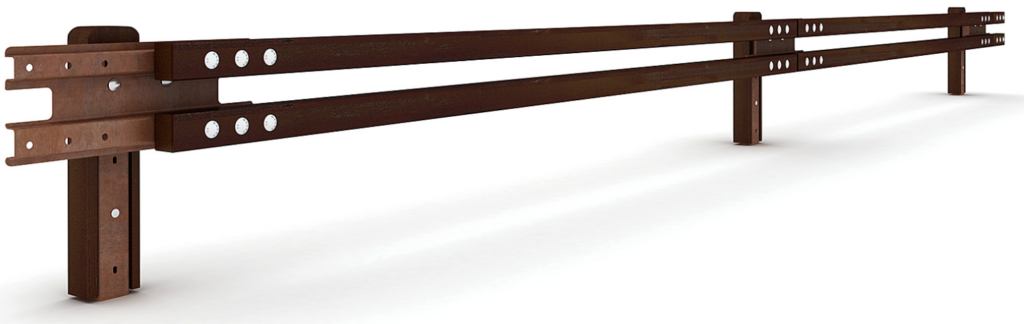

N2BL-02 Dark

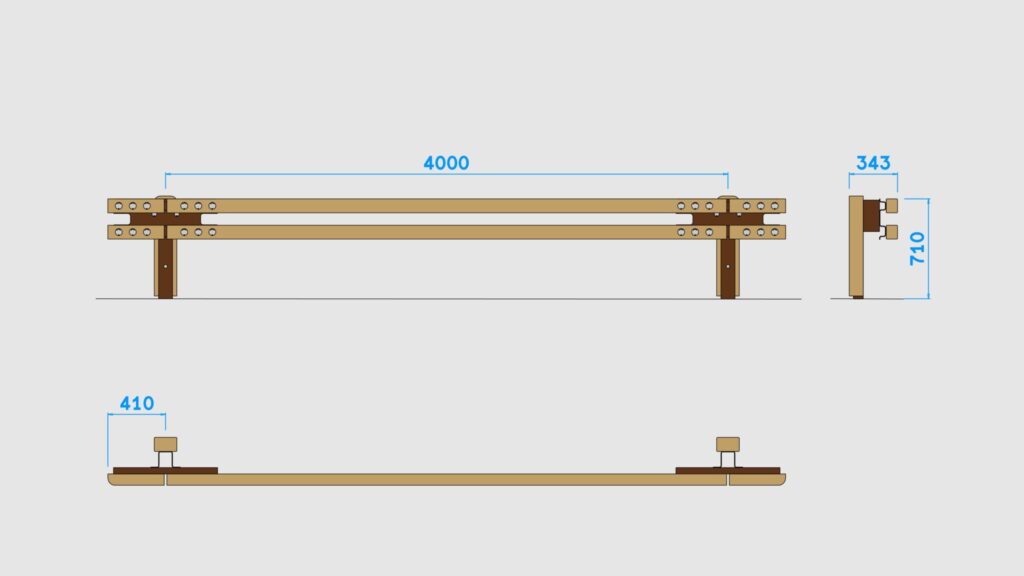

N2BL-02 Tech Drawings


  • N2 Crash Rated
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Optional Handrail
  • Easy to install

Typical Applications

  • Retail parks
  • Parks
  • Preservation Areas
  • Picnic Areas
  • Country Roads and Highways

Barrier Specification

  • Containment Class: N2
  • Containment Level: 82 kj
  • Crash Test Length: 92m
  • Working Width: W5 ≤ 1.7m
  • Post Embedment: 1085mm
  • Height From Tarmac Level: 710mm
  • Post Spacings: 4m
