H2BL-01 – Timber Crash Rated Barrier

H2BL-01 – Timber Crash Rated Barrier

H2BL-01 Light

Maintaining Smart Looking High Security Barriers

Road side safety barriers made of laminated wood and Corten steel, CE certified according to the harmonized standard EN 1317-5 with containment level in H2 class, CE certificate n°0497/CPR/3154 (first issue on 18/06/09) issued by CSI SPA – Bollate (MI).

Installation Sheet H2BL-01

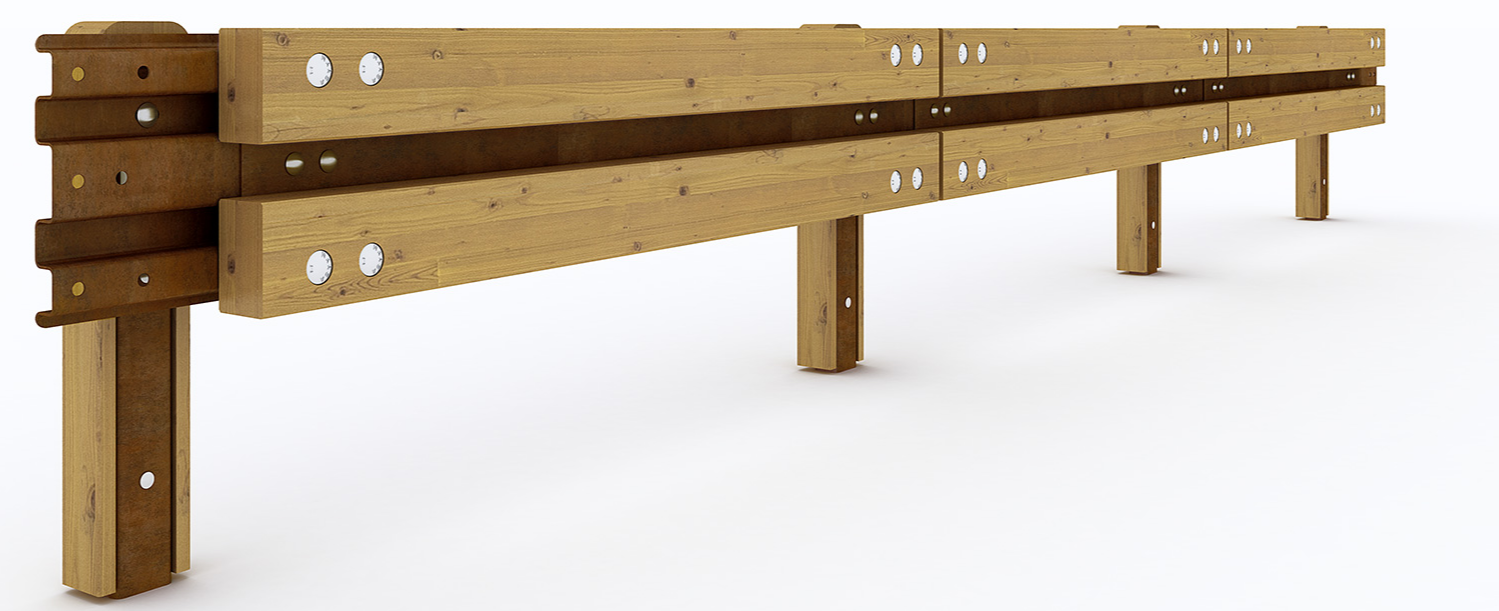

H2BL-01 Light

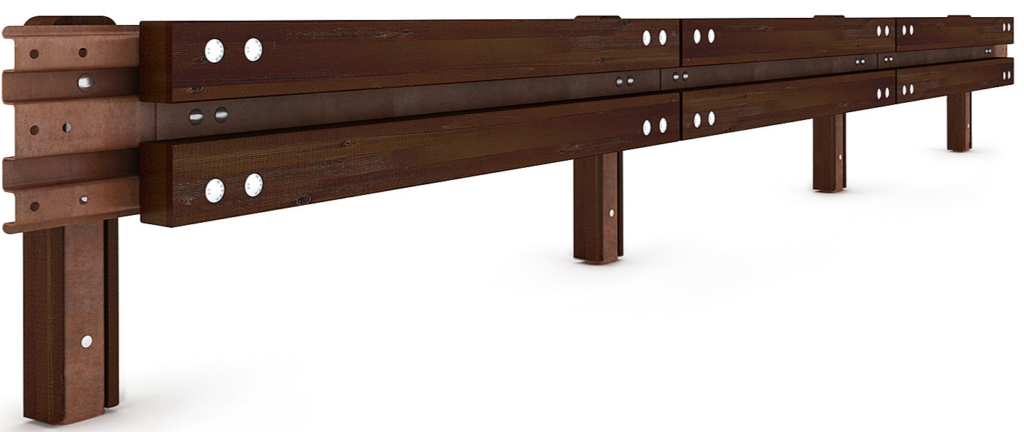

H2BL-01 Dark

Benefits

  • H2 Crash Rated
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Optional Handrail
  • Easy to install

Typical Applications

  • Retail parks
  • Parks
  • Preservation Areas
  • Picnic Areas
  • Country Roads and Highways

Barrier Specification

  • Containment Class: H2
  • Containment Level: 288KJ
  • Crash Test Length: 90m
  • Working Width: W5 ≤ 1.7m
  • Vehicle Intrusion: VI6 ≤ 2.1m
  • Height From Tarmac Level: 830mm
  • Post Spacings: 2m
