N2BP-01 Bridge Safety Barrier

N2BP-01 Bridge Safety Barrier


Maintaining Natural Looking Protection

The N2BP-01 is a Bridge safety barrier made of laminated wood and Corten steel, CE certified according to the harmonized standard EN 1317-5 with containment level in N2 class, CE certificate n° 0497/CPR/5649 (first issue on 22/02/2017) issued by CSI SPA – Bollate (MI).

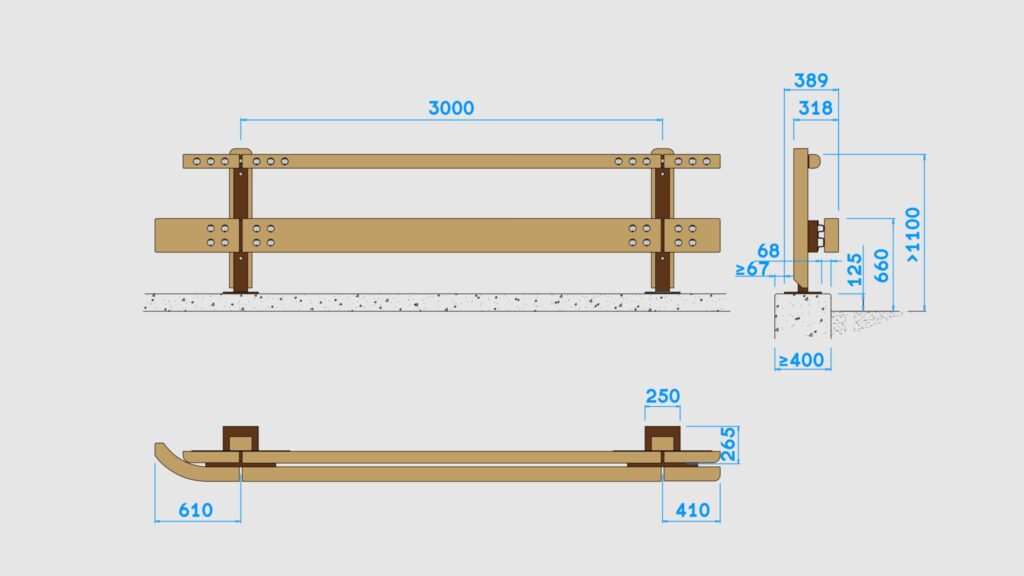

Installation Sheet N2BP-01

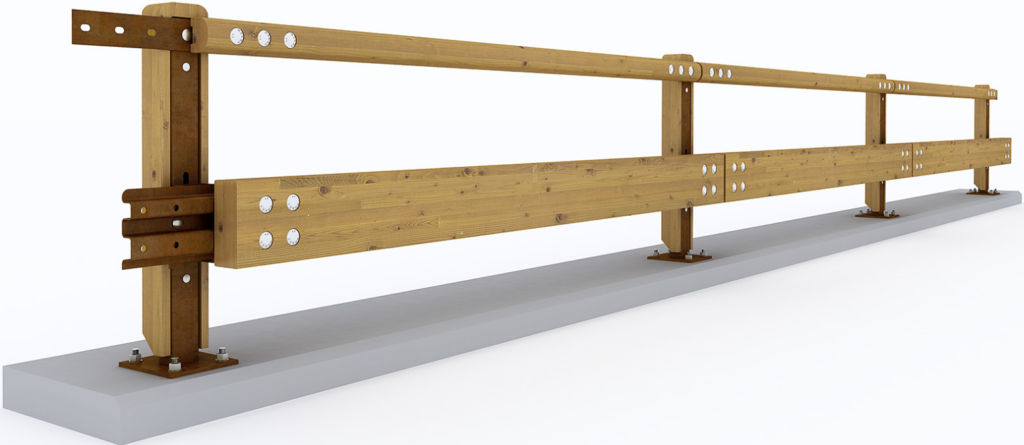

N2BP-01 Light

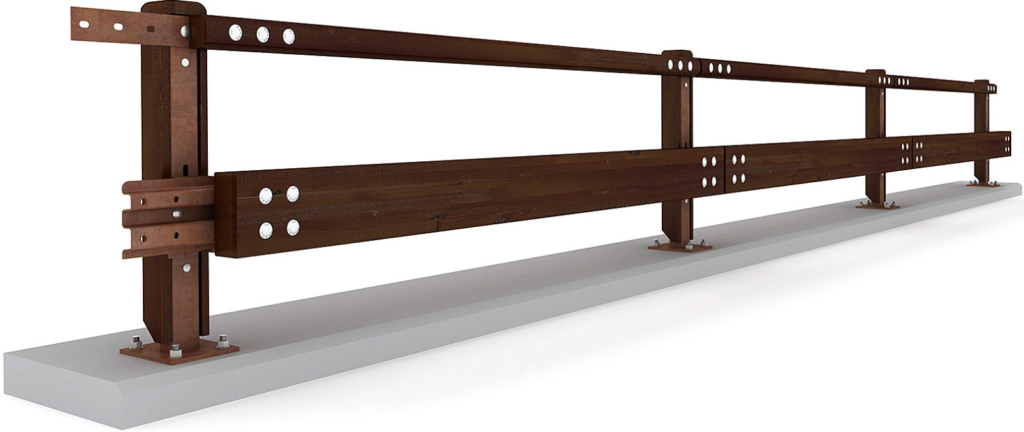

N2BP-01 Dark


  • N2 Crash Rated
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Optional Handrail
  • Easy to install

Typical Applications

  • Bridges


  • Containment Class: N2
  • Containment Level: 82KJ
  • Crash Test Length: 78m
  • Working Width: W4 ≤ 1.3m
  • Concrete Curb: 125mm Raised
  • Height From Tarmac Level: 660mm – 1100mm
  • Post Spacings: 3m
