H2BP-02 Bridge Safety Barrier

H2BP-02 Bridge Safety Barrier


Maintaining Smart Looking High Level Security Bridge Barriers

Bridge safety barriers made of laminated wood and Corten steel, CE certified according to the harmonized standard EN 1317-5 with containment level in H2 class, CE certificate n°0497/CPR/3247 (first issue on 22/10/09) issued by CSI SPA – Bollate (MI).

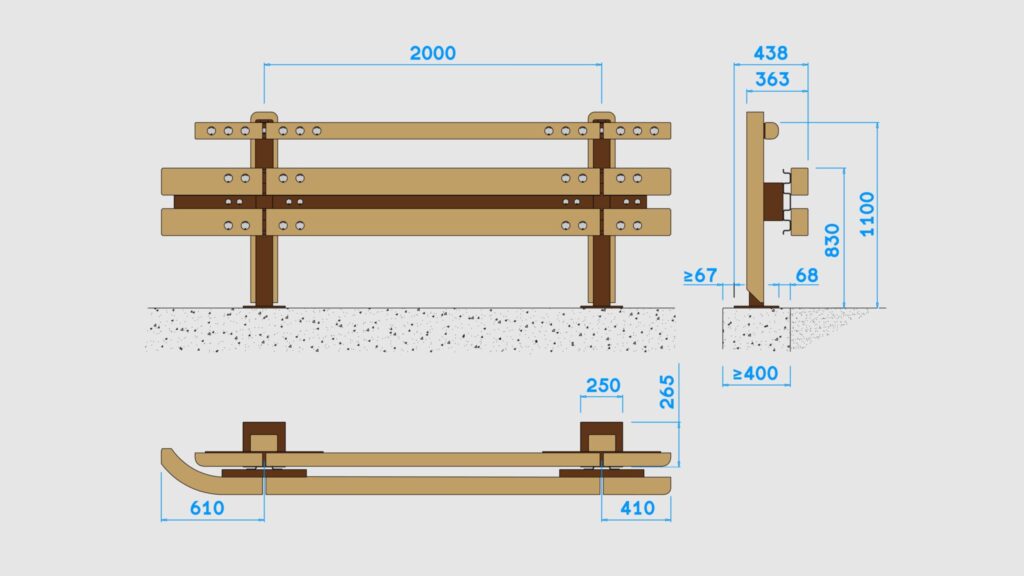

Installation Sheet H2BP-02

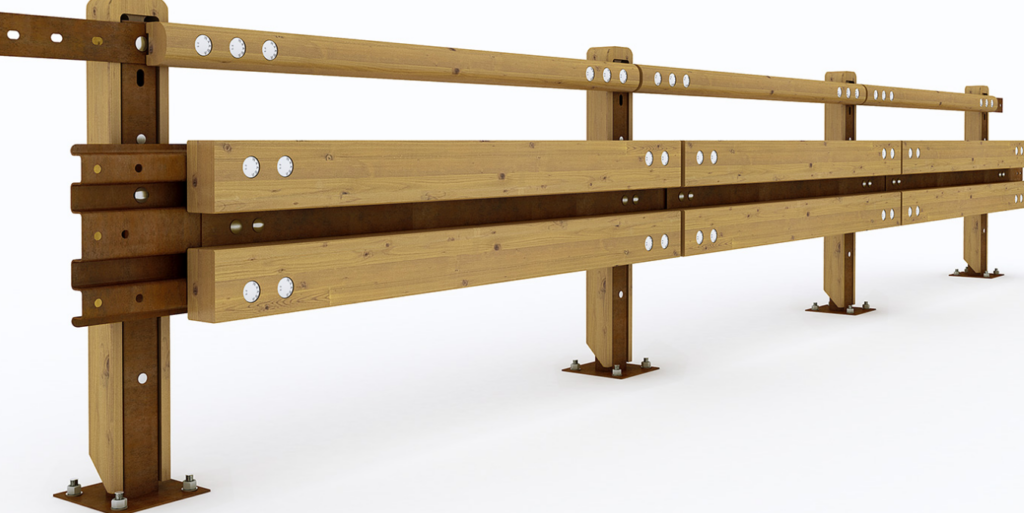

H2BP-02 Light

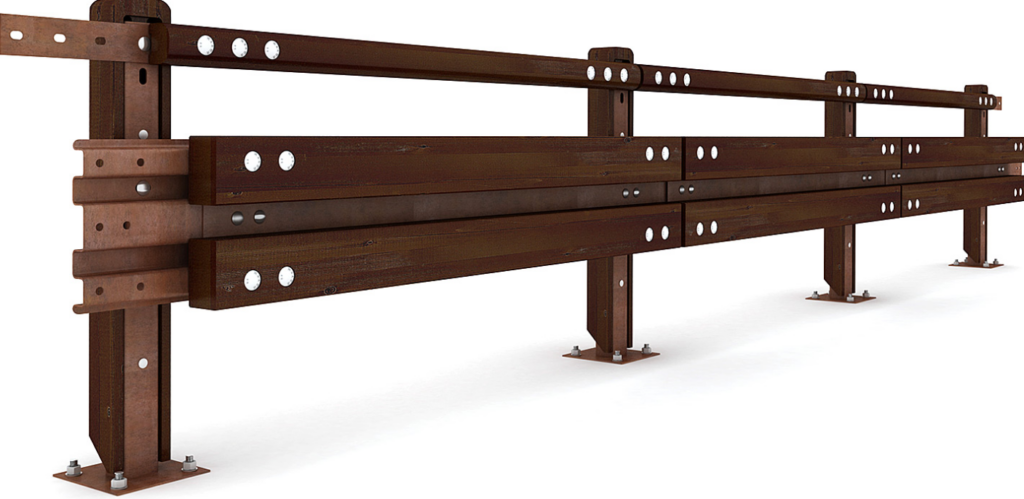

H2BP-02 Dark


  • H2 Crash Rated
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Optional Handrail
  • Easy to install

Typical Applications

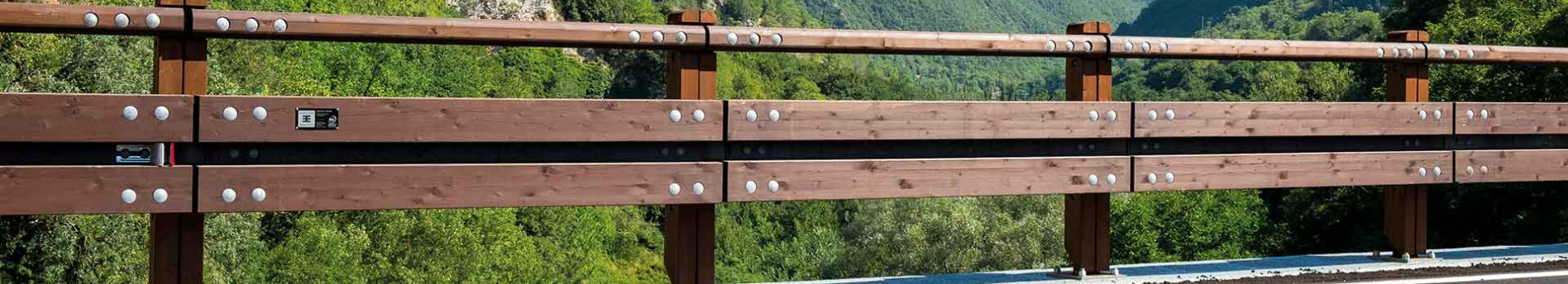

  • Bridges

Barrier Specification

  • Containment Class: H2
  • Containment Level: 288KJ
  • Crash Test Length: 70m
  • Working Width: W6 ≤ 2.3m
  • Vehicle Intrusion: V7 ≤ 2.5m
  • Concrete Curb: Tarmac Level
  • Height From Tarmac Level: 830mm – 1100mm
  • Post Spacings: 2m
