H1BL-01 Timber Crash Rated Barrier

Posted by nexusadmin

H1BL-01 – Timber Crash Rated Barrier

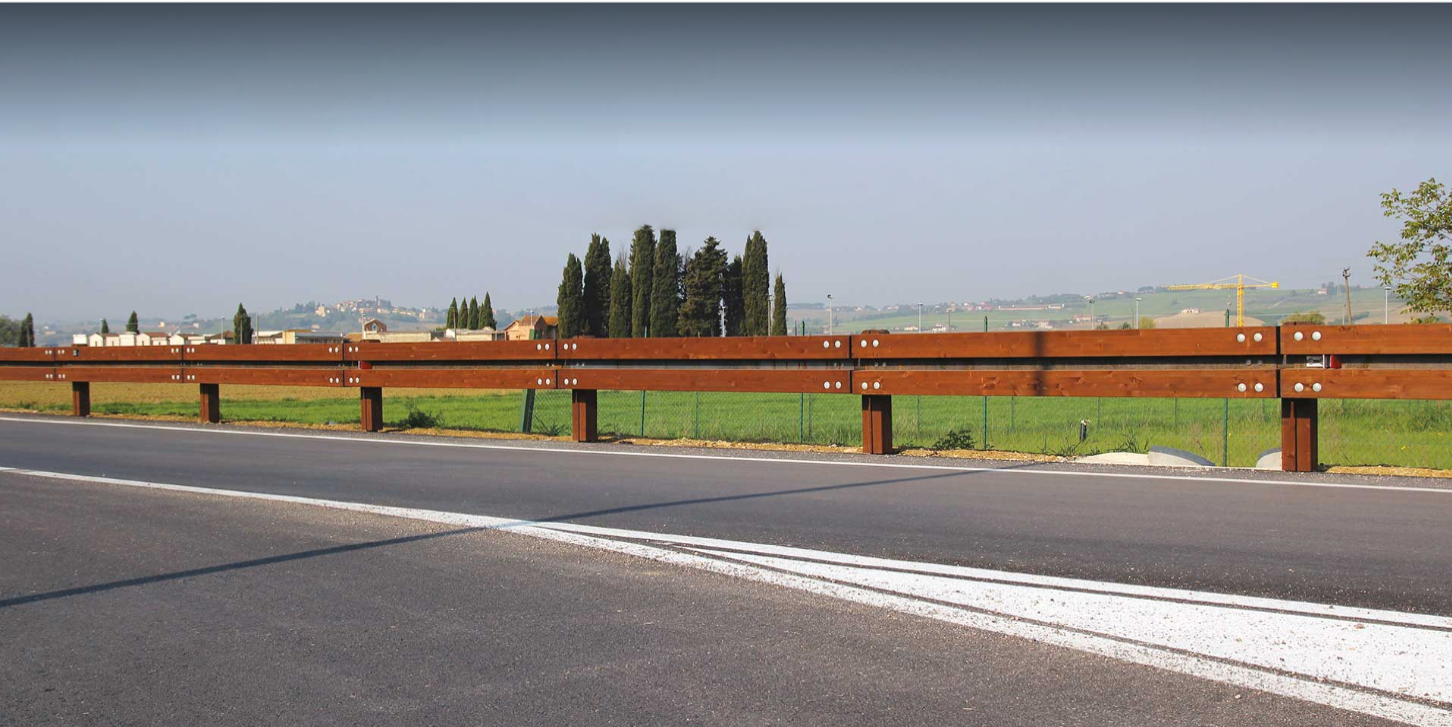

H1BL-01 With Scenery

Maintaining Smart Looking High Security Barriers

Road side safety barriers made of laminated wood  and Corten steel, CE certified according to the harmonized standard EN 1317-5 with containment level in H1 class.

Installation Sheet H1BL-01

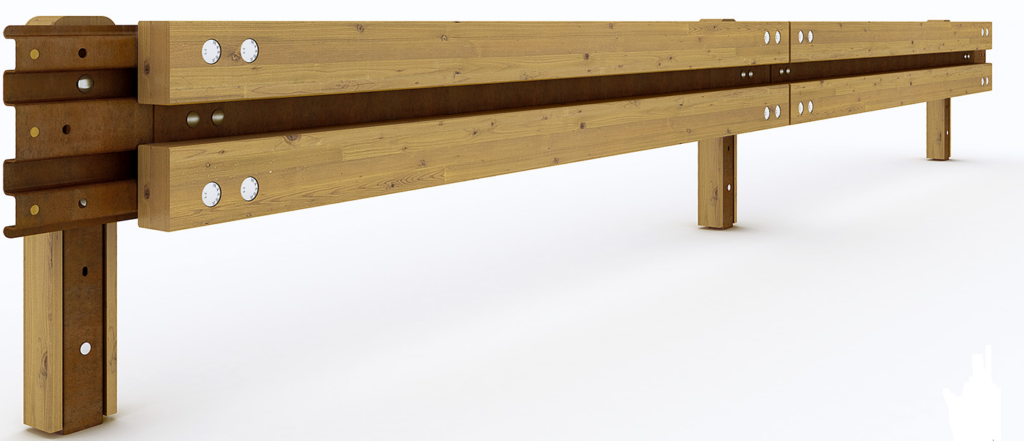

H1BL-01 Light

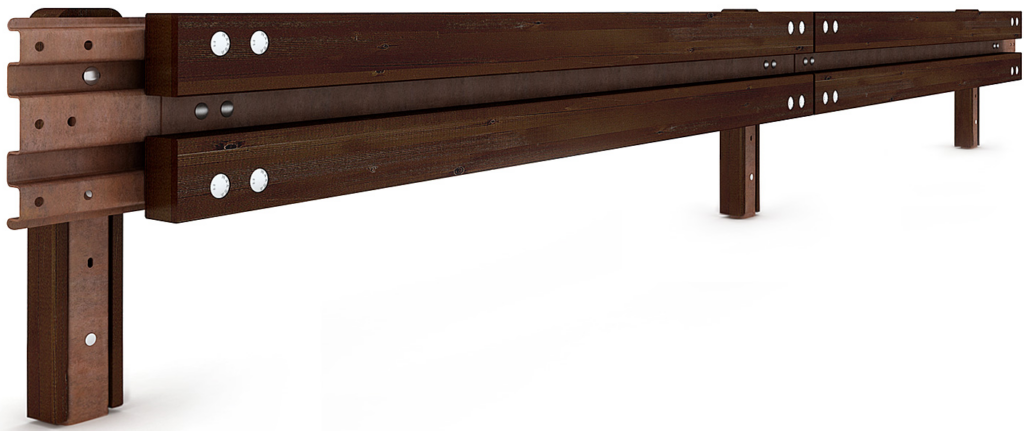

H1BL-01 Dark
H1BL-01 Tech Drawing

Benefits

  • H1 Crash Rated
  • Natural timber appearance
  • Fully recyclable materials
  • Modular system
  • Optional Handrail
  • Easy to install

Typical Applications

  • Retail parks
  • Parks
  • Preservation Areas
  • Picnic Areas
  • Country Roads and Highways

Barrier Specification

  • Containment Class: H1
  • Containment Level: 127 kj
  • Crash Test Length: 81m
  • Working Width: W5 ≤ 1.7m
  • Post Embedment: 1000mm
  • Height From Tarmac Level: 830mm
  • Post Spacings: 3m
